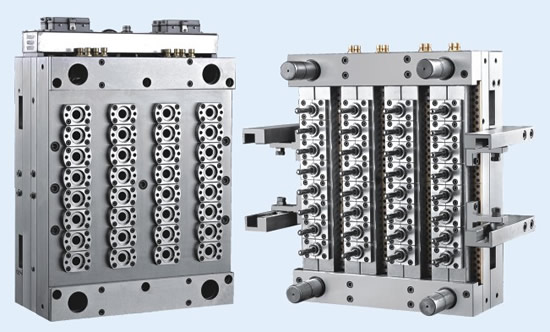

24 cavities Preform mold

Present Location:  Mold

  • Name: 24 cavities Preform mold
    Category: Mold

    Detail

    Pin-valve Hot runner PET Preform mold


    1) High technology design of the perform mould .All of the moulds are designed as international standard. .In dividual temperature controlling system adopted Japan Omron components. Off-center for each cavity of the perform mould to be sure less than 0.05mm.

    2) Two directions hot runner design, the injection point for each perform is perfectly without any damage for the blowing of the bottle.

    3) Each mold with 2 million shots guarantee.


    Main features
    ◆ Off-center adjustment system
          Off-center adjustment system can make the error of preform’s wall thickness less than 0.05mm. This system does not affect the lifetime of mould
    ◆ Self-lock System
          International advanced bi-awls fixed orientation self-locked structure has been adopted
    ◆ Cooling System
          On the preform mould’s each inner part,including core, cavity and valve gate system, there is all specially designed cooling system with perfect cooling effect and sbundant strength
    ◆ Heating System
          Double heating system can ensure that the impact of heating is good and quality control is credible. The Heating Band unit makes nozzles be with invariable temperature. The Heater Unit is used to heat the hot runner plate with long using life and powerful haating capacity
    ◆ Hot Runner System
          The preform mold adopts Pin-valve type Hot Runner System,such hot runner system can reduce mould’s each part’s wear&tera and maintenance cost,and also save 10%~15% electric energy
    ◆ Hydraulic Ejectiong System
          The preform-doffing success ratio has achieved firm endurance and the whole preform ejecting process will become much quieter


    Technical parameters for reference:

    ITEM
    HIGH(MM)
    WIDTH(MM)
    THICKESS(MM)
    WEIGHT(KG)
    4 cavity
    345
    350
    436
    310
    6 cavity
    410
    410
    480
    390
    8 cavity
    475
    410
    480
    450
    12 cavity
    605
    410
    480
    570
    16 cavity
    750
    410
    480
    650
    24 cavity
    785
    500
    520
    1100
    32 cavity
    860
    600
    520
    1400
    48 cavity
    1120
    645
    580
    1750
    72 cavity
    1080
    800
    580
    2500



    Features of Cap mold
         Mold ranges from 1 cavity to 72 cavities
        ◆ The mold plate is made of stainless steel.
        ◆ Standard interchangeable mold components
         Special designed nozzles ensure our unique feature
         High performance hot runner system ensures uniform melt flow and pressure in all cavities
         All of parts are manufactured by CNC equipments
          Every perfect PET bottle accordingly has a suitable plastic cap while a proper cap makes bottles better. We offer high quality hot runner and cold runner cap injection mold up to 72 cavities to help you produce an ideal plastic cap. From our products list you will find various moulds to produce normal screw cap, tamper-proof cap, flip-top cap and so on, which cover the package market of mineral water, soft drinks, juice, as well as some other food and non-food package


    Features of blowing mold
         The mold is made by high quality steel
         The mold is designed with 3D modeling software
         Reliable hard chrome plated
         Various container designs for option
         Proper cooling channel design and leakage proof
         All of the parts are manufactured with CNC equipments
